DSG-JIT

A JIT-compiled, differentiable 3D Dynamic Scene Graph engine for SLAM, neural fields, and world-modeling.

DSG-JIT Logo

What is DSG-JIT?

Modern spatial intelligence systems are fractured:

  • SLAM handles metric consistency
  • Neural fields / Gaussians handle appearance & dense geometry
  • Scene graphs handle semantic structure & relationships
  • Optimizers handle consistency, often as a separate non-differentiable backend

DSG-JIT unifies all of these into one system:

A JIT-compiled, differentiable engine that builds, optimizes, and reasons over a 3D world model in real time.

This repository provides:

  • A differentiable factor-graph core (SE3 + Euclidean)
  • A SceneGraphWorld layer for poses, places, rooms, voxels
  • Voxel grid with smoothness + observation factors
  • Learnable parameters (odom, voxel obs, factor weights)
  • JIT-compiled solvers (JAX Gauss–Newton on manifolds)
  • A full suite of tests, experiments, and benchmarks

This forms the foundation for a future differentiable Dynamic Scene Graph world model.

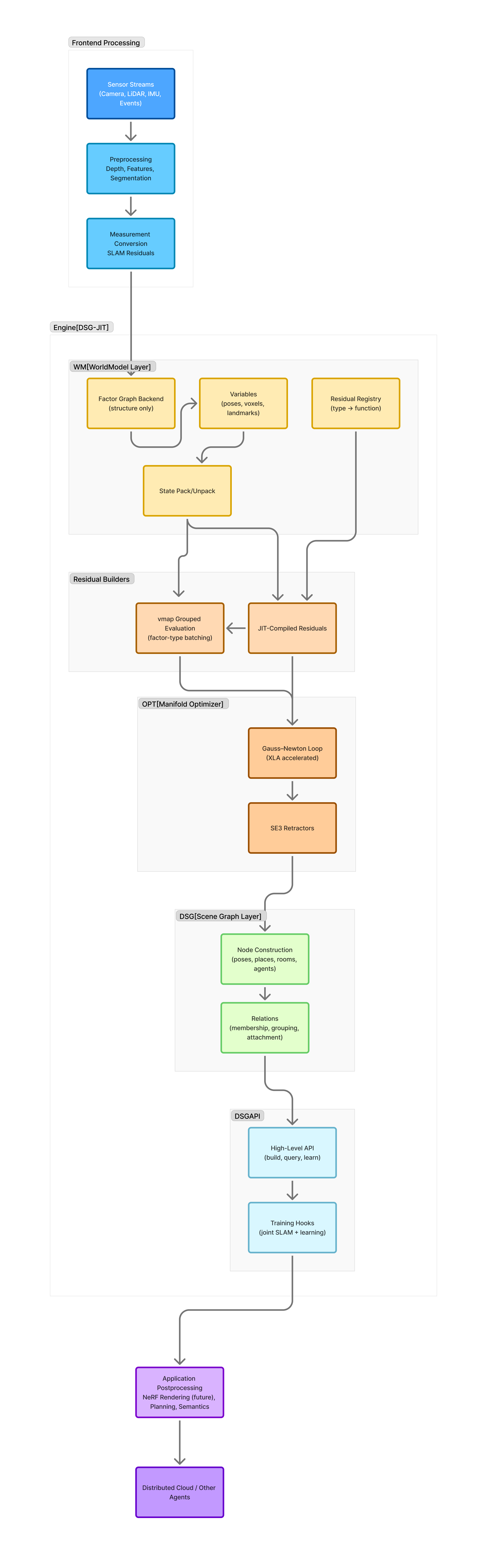

High-Level Architecture

DSG-JIT Architecture

DSG-JIT is organized into five conceptual layers:

1. Sensor Frontend

Processes raw sensor data (RGB-D, LiDAR, IMU) into: - Depth / point clouds - Frame-to-frame motion - Optional semantics

2. JIT-Compiled SLAM Backend

A differentiable factor graph performing:

  • Pose optimization on SE3 manifolds
  • Loop closure / chain constraints
  • Learnable factor-type weights
  • Fully JIT-compiled Gauss–Newton

3. Neural Field Module (future integration)

To support:

  • NeRF / Gaussian splatting
  • Photometric residuals
  • Dense geometry for segmentation

4. Dynamic 3D Scene Graph Layer

SceneGraphWorld tracking:

  • Poses, places, rooms, agents
  • Attachments and voxel embeddings
  • Geometry + semantics as a single structure

5. Global Optimization & Reasoning

Unified optimization across:

  • Trajectories
  • Voxels
  • Scene graph structure
  • Learnable factors

For more detail, see the full architecture page:
➡️ architecture.md

Quickstart

Clone and install

git clone https://github.com/TannerTorrey3/DSG-JIT.git
cd DSG-JIT

python3 -m venv venv
source venv/bin/activate  # Windows: venv\Scripts\activate

pip install -r requirements.txt

export PYTHONPATH=src

Run Tests

To verify your installation, run:

pytest -q

You should see all tests passing.

First Example

Run a simple dynamic trajectory experiment:

python experiments/exp06_dynamic_trajectory.py

Additional examples are available in:

➡️ examples.md

Current Capabilities

✔ Differentiable Factor Graph Engine

  • SE3 manifolds
  • Euclidean variables
  • Priors, odometry, attachments
  • Voxel smoothness & observation residuals

✔ JIT-Compiled Solvers

  • Gauss–Newton
  • Manifold-aware retractors
  • Significant runtime speedups

✔ SceneGraphWorld

  • Poses, places, rooms
  • Agents & trajectories
  • Attachments
  • Voxel embedding layer

✔ Learnable Components

  • Odom measurements
  • Voxel observation points
  • Factor-type weights
  • Hybrid SE3 + voxel joint learning

✔ Benchmarks

  • SE3 chain (200 poses): 51 ms (JIT) vs 376,098 ms (no JIT)
  • Voxel chain (500 voxels): 96 ms (JIT) vs 3,044 ms (no JIT)
  • Hybrid SE3 + voxel (50 poses, 500 voxels): 149 ms (JIT) vs 97,500 ms (no JIT)

Benchmarks available at:
➡️ benchmarks.md

Roadmap Overview

Phase 1 — Core Framework ✔

Types, manifolds, solvers

Phase 2 — SE3 + Scene Graph Prototype ✔

Pose chains, dynamic graph, places/rooms

Phase 3 — Voxel Integration ✔

Voxel grids, smoothness, observation learning

Phase 4 — Unified Learning Engine ✔

Factor-type weights, odom learning, hybrid experiments

Phase 5 — Scaling & Real-World Validation 🚧

Benchmarks, documentation, dataset connectors

Details:
➡️ roadmap.md

Project Structure

dsg-jit/
  src/
    core/            # FactorGraph, math3d, types
    optimization/    # Solvers + JIT wrappers
    slam/            # Residuals, manifolds, SE3 ops
    scene_graph/     # Relations, entities
    world/           # SceneGraphWorld, training, voxel grid
  tests/             # 26 test files
  experiments/       # Exp01–Exp16 (hero experiments)
  benchmarks/        # Performance comparisons
  docs/              # MkDocs documentation
  README.md

Who Is DSG-JIT For?

  • Robotics & SLAM researchers
  • 3D scene graph / geometric reasoning labs
  • NeRF / Gaussian splatting researchers
  • Embodied AI teams building world models
  • Anyone who needs a differentiable 3D optimizer

Get Involved

Contributions welcome!
Open a PR or file an issue on GitHub.
